Thông tin chi tiết sản phẩm:
|
| Technology: | Infrared Thermal | Spectral Range: | 3.5 - 5.0 μm |
|---|---|---|---|
| Menu: | OSD | Type: | Cooled Thermal |
| Sensitivity: | <50 MK | Dimensions: | 160 X 120 X 120 Mm |
| Pixel Size: | 15μm X15μm | Enclosure: | Aluminum Alloy, Sealed; |
| Làm nổi bật: | Cooled Thermal Camera 640x480 resolution,IP66 Waterproof Thermal Camera,High Resolution Cooled Thermal Camera |
||

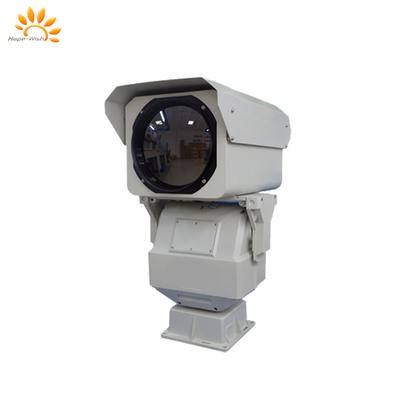

The Cooled Thermal Camera is a cutting-edge infrared car camera designed to provide high-quality thermal imaging for various applications. With a resolution of 640 X 480, this camera delivers detailed thermal images with exceptional clarity and accuracy.
Equipped with a lens made from Germanium, a high-quality material known for its excellent thermal conductivity, the Cooled Thermal Camera ensures optimal performance in capturing thermal signatures. The Germanium lens enhances the camera's sensitivity to thermal radiation, enabling it to detect even subtle temperature differences.
CTC Series Ultra Long Range Cooled Thermal Camera is developed on the basis of the latest cooled IR technology. Featuring high NETD, advanced digital circuit and image processing algorithm, the camera provides users crisp thermal images. While ensuring wide coverage, it also meets ultra long range surveillance demand detection range. The camera enclosure is IP66 rated, which is designed to withstand the harshest weather conditions.
1. 20mk NETD ensures premium thermal image;
2. Unique AS AS+DOE continuous optical zoom and 3CAM high precision mechanical engineering;
3. Superb inhomogeneous correction ensures crisp thermal image;
4. SDE image enhancement;
5. Aluminum alloy enclosure, IP 66 rated;
| Model | AGT-CTC63066 |
Detect distance | Tank :19500m Human :13500m |
Identification distance | Tank:11000m Human:6300m |
Detector | FPA MCT detector |
| Cooling | Stirling cryocooler |
Resolution | 640×512 |
| Pixel size | 15μm |
| Spectral range | 3.7～4.8μm MWIR |
| NETD | 20mK(@25℃) |
Lens |
30～660mm continuous zoom F4. |
| Optical axis stability | 1.2mrad |
Image processing | ．3CAM high-precision optomechanical design ．Image enhancement: SDE; ．Color: White hot/Black hot; ．Brightness and contrast: AGC, adjustable; ．Digital zoom: 2X, 4X ．Cross: display ．Correction: Shutter/Background |
| Lens control | Motorized zoom, auto focus |
Environmental indicators | ．Enclosure: aluminum alloy, sealed; ．Working temp: -40℃～+60℃ ．Storage temp:-45℃～+70℃ ．Ingress protection: IP66 ．Power consumption: 23W(normal), 30W(peak) |
Interface | ．Control: RS485/RS232(PELCO D, baud rate:2400bps/s) ．Menu: OSD ．Video: PAL/NTSC ．Power supply: DC24V ．Connector: waterproof aviation connector |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
