Thông tin chi tiết sản phẩm:
|
| Enclosure: | Aluminum Alloy, Sealed; | Menu: | OSD |
|---|---|---|---|
| Image Enhancement: | SDE | Technology: | Infrared Thermal |
| Dimensions: | 160 X 120 X 120 Mm | Spectral Range: | 3.5 - 5.0 μm |
| Field Of View: | 9.2° X 6.9° | Type: | Cooled Thermal |
| Làm nổi bật: | CTC Series cooled thermal camera,Ultra long range thermal camera,640x512 resolution thermal camera |
||

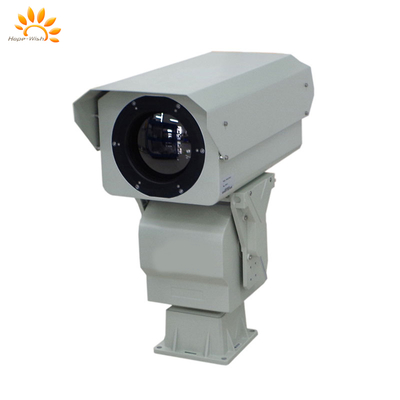

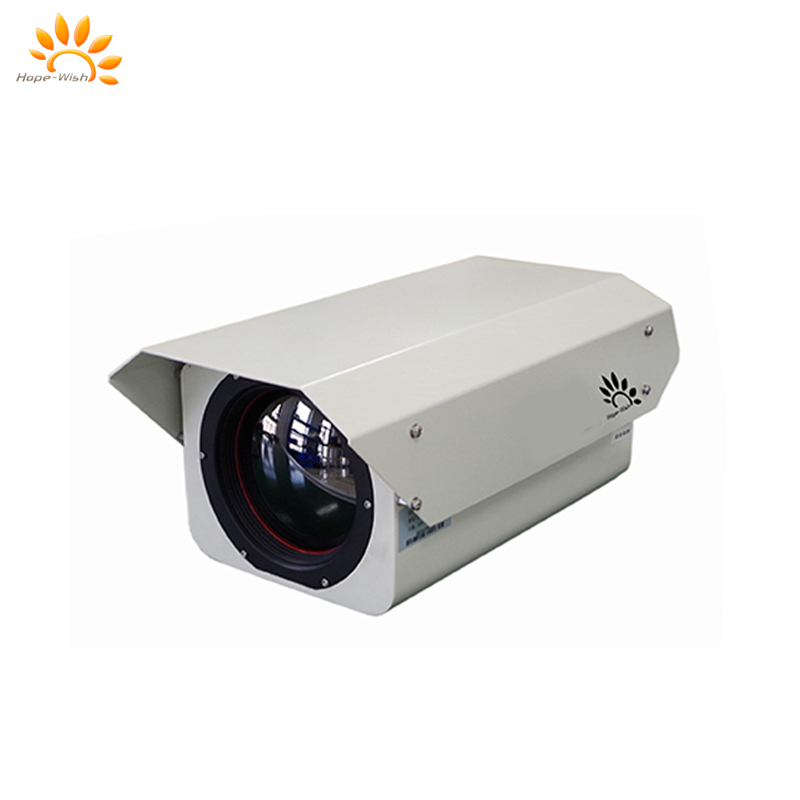

CTC Series Ultra Long Range Cooled Thermal Camera is developed on the basis of the latest cooled IR technology. Featuring high NETD, advanced digital circuit and image processing algorithm, the camera provides users crisp thermal images. While ensuring wide coverage, it also meets ultra long range surveillance demand detection range. The camera enclosure is IP66 rated, which is designed to withstand the harshest weather conditions.
The Germanium lens material used in this camera module ensures optimal thermal imaging performance by allowing infrared radiation to pass through with minimal distortion. This high-quality lens material enhances the overall image quality and thermal sensitivity of the camera, enabling precise temperature measurements and thermal analysis.
In conclusion, the Cooled Thermal Camera is a state-of-the-art thermal imaging solution that offers high resolution, wide Field Of View, and durable construction for various applications. Whether used for industrial inspections, security monitoring, or scientific research, this advanced thermal camera module provides reliable and accurate thermal imaging capabilities to meet the needs of diverse industries.
1. 20mk NETD ensures premium thermal image;
2. Unique AS AS+DOE continuous optical zoom and 3CAM high precision mechanical engineering;
3. Superb inhomogeneous correction ensures crisp thermal image;
4. SDE image enhancement;
5. Aluminum alloy enclosure, IP 66 rated;
| Model | HP-CTC64080 |
Detect distance | Tank : 20000m Human :15000m |
Identification distance | Tank:13000m Human:8000m |
Detector |
FPA MCT detector |
| Cooling | Stirling cryocooler |
Resolution | 640×512 |
| Pixel size | 15μm |
| Spectral range | 3.7～4.8μm MWIR |
| NETD | 20mK(@25℃) |
Lens |
40～800mm continuous zoom F4. |
| Optical axis stability | 1.2mrad |
Image processing | ．3CAM high-precision optomechanical design ．Image enhancement: SDE; ．Color: White hot/Black hot; ．Brightness and contrast: AGC, adjustable; ．Digital zoom: 2X, 4X ．Cross: display ．Correction: Shutter/Background |
| Lens control | Motorized zoom, auto focus |
Environmental indicators | ．Enclosure: aluminum alloy, sealed; ．Working temp: -40℃～+60℃ ．Storage temp:-45℃～+70℃ ．Ingress protection: IP66 ．Power consumption: 23W(normal), 30W(peak) |
Interface | ．Control: RS485/RS232(PELCO D, baud rate:2400bps/s) ．Menu: OSD ．Video: PAL/NTSC ．Power supply: DC24V ．Connector: waterproof aviation connector |
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
