Thông tin chi tiết sản phẩm:
|
| Sensitivity: | <50 MK | Type: | Cooled Thermal |
|---|---|---|---|
| Sensor: | FPA MCT Detector | Resolution: | 640 X 480 |
| Pixel Size: | 15μm X15μm | Spectral Range: | 3.5 - 5.0 μm |
| Technology: | Infrared Thermal | Ip Rate: | IP66 Waterproof |
| Làm nổi bật: | Cooled Thermal Camera with Germanium Lens,Cooled Thermal Camera 30-300mm Zoom,Germanium Lens Thermal Camera |
||

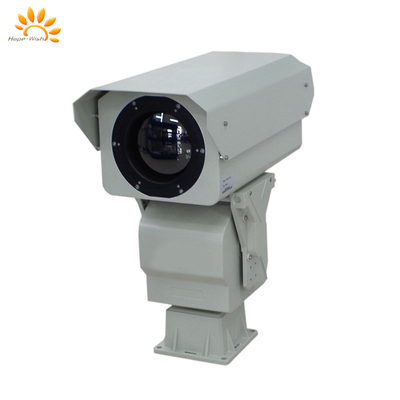

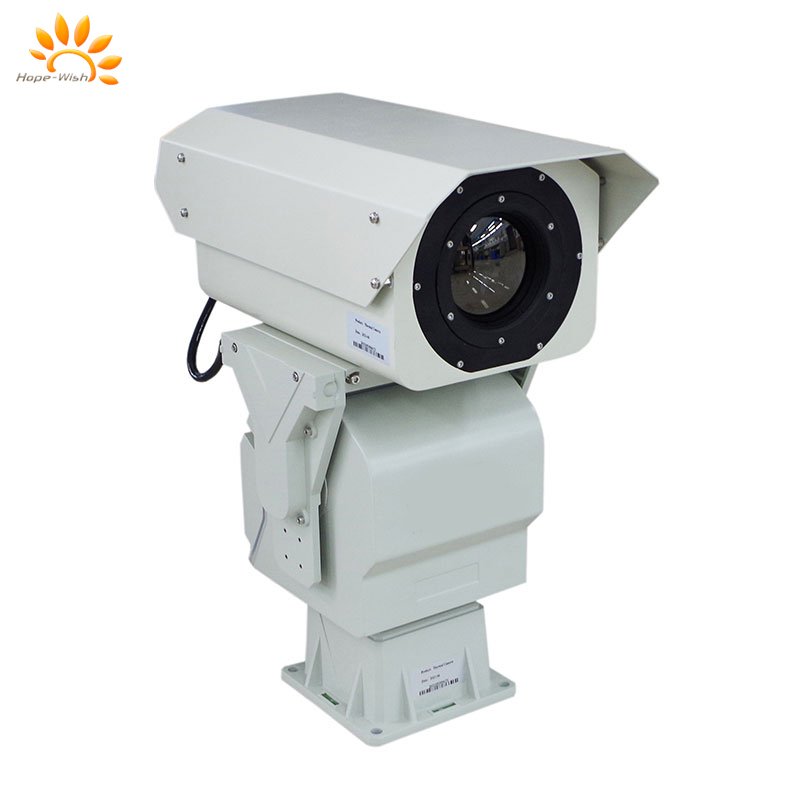

CTC Series Ultra Long Range Cooled Thermal Camera is developed on the basis of the latest cooled IR technology. Featuring high NETD, advanced digital circuit and image processing algorithm, the camera provides users crisp thermal images. While ensuring wide coverage, it also meets ultra long range surveillance demand detection range. The camera enclosure is IP66 rated, which is designed to withstand the harshest weather conditions.
Overall, the Cooled Thermal Camera is a powerful and reliable tool that meets the demands of professionals seeking high-quality thermal imaging solutions. From security and surveillance applications to industrial inspections and research projects, this camera provides exceptional performance and versatility for a wide range of uses. With its advanced features, superior image quality, and compact design, the Cooled Thermal Camera stands out as a top choice among Cooled Camera Modules and Infrared Thermal Scope devices in the market.
1. 20mk NETD ensures premium thermal image;
2. Unique AS AS+DOE continuous optical zoom and 3CAM high precision mechanical engineering;
3. Superb inhomogeneous correction ensures crisp thermal image;
4. SDE image enhancement;
5. Aluminum alloy enclosure, IP 66 rated;
| Model | HP-CTC63030 | |
|
Detect distance |
Tank :15000m Human :8000m |
|
|
Identification distance |
Tank:6000m Human:3000m |
|
|
Detector |
FPA MCT detector |
|
| Cooling | Stirling cryocooler | |
|
Resolution |
640×512 | |
| Pixel size | 15μm | |
| Spectral range | 3.7～4.8μm MWIR | |
| NETD | 20mK(@25℃) | |
|
Lens |
30～300mm continuous zoom F4. |
|
| Optical axis stability | 1.2mrad | |
|
Image processing |
．3CAM high-precision optomechanical design ．Image enhancement: SDE; ．Color: White hot/Black hot; ．Brightness and contrast: AGC, adjustable; ．Digital zoom: 2X, 4X ．Cross: display ．Correction: Shutter/Background |
|
| Lens control | Motorized zoom, auto focus | |
|
Environmental indicators |
．Enclosure: aluminum alloy, sealed; ．Working temp: -40℃～+60℃ ．Storage temp:-45℃～+70℃ ．Ingress protection: IP66 ．Power consumption: 23W(normal), 30W(peak) |
|
|
Interface |
．Control: RS485/RS232(PELCO D, baud rate:2400bps/s) ．Menu: OSD ．Video: PAL/NTSC ．Power supply: DC24V ．Connector: waterproof aviation connector |
|
