Thông tin chi tiết sản phẩm:
|
| kích thước ăng ten: | 40cm | Mô-đun bên trong: | Các mô-đun được thiết kế đặc biệt cho FPV |
|---|---|---|---|
| Nhà sản xuất chipset: | nvidia | Phạm vi góc phủ sóng: | Góc phương vị: 360 °; Sân: 60 ° |
| Tình trạng sản phẩm: | Cổ phiếu | Thời lượng pin: | > 5 giờ |
| Kích thước gói: | 20,00cm * 20,00cm * 10,00cm | Tỷ lệ cập nhật: | 1.2S |
| Làm nổi bật: | anti drone surveillance system,multi sensor anti uav,anti drone system with warranty |
||

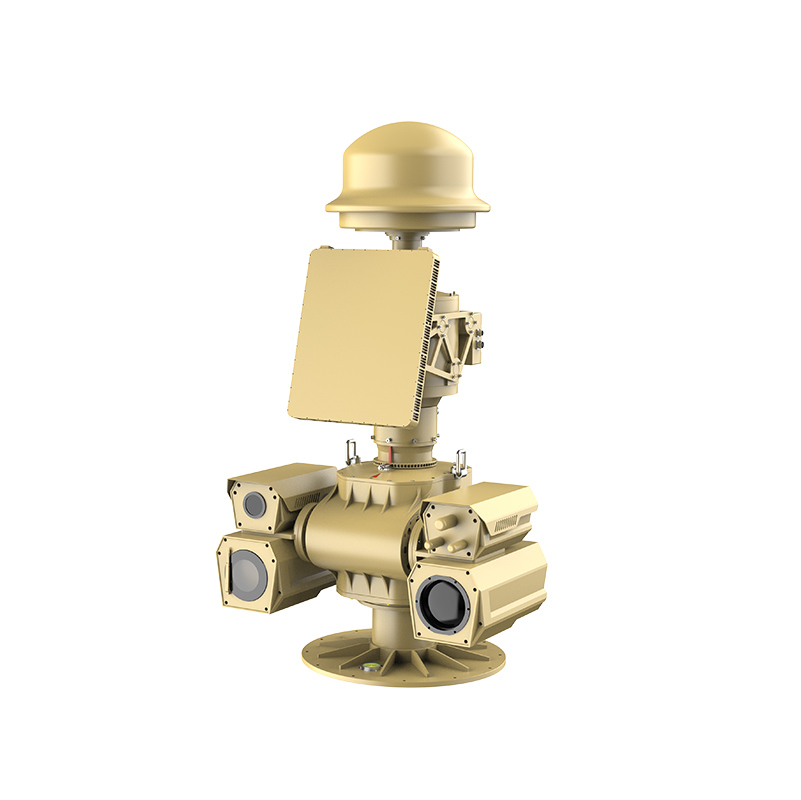

The AUS70 anti-drone system consists of a spectrum detection system, a radar detection system, intelligent camera tracking system, jamming interference system, and control software. For the spectrum detection system, it is combined with radar detection for system verification, which guides the intelligent camera system to detect, track, and identify the target.Once the intelligent camera system confirmed the target is for the drone type, the linked radio interference countermeasure subsystem will start the action to cut off the drone signal and blind the drone's optical sensing device, causing the drone to make an emergency landing or return.
The AUS70 anti-drone system is independently developed and produced by HOPEWIST technologies. Through the design of two servo turntables, each module is integrated and uniformly controlled by the anti-drone software, giving full play to the advantages of each device, ensuring that each module device works independently while achieving more efficient linkage and precise disposal. The system has a modular design and can flexibly match detection and interference modules according to customer needs, and flexibly select optical configurations to meet the detection, identification, countermeasures and other needs under different usage scenarios.
lEasy installation, wide application, reduced cost, simplified system calibration and debugging, and one-click achievement.
With the Anti Drone System, you can enhance your security measures and prevent unauthorized drone incursions. Whether deployed in sensitive areas, critical infrastructure, or public events, this system provides a reliable defense against drone-related risks, ensuring peace of mind and protection for your property.
| Model No. | HP-AUS70 | |
| Distance |
For the target of DJI phamtom 4 RF detector≥5km Radar ≥5Km； Camera detection≥5km,Track distance≥4km； Jamming distance≥5Km,Deception distance:≥5Km； Laser blinding:≥1Km； |
|
| RF detection |
Detection recognition frequency range:300MHz~6000MHz； Detection frequency :845MHz,915MHz,1.4GHz,2.4GHz,5.2GHz,5.8GHz； Detection bandwidth:≥120MHz； Accuracy:≤3° Target detection in one same time:≥30 pieces； |
|
| Radar |
Working band:X hanga Data refresh data:2s Target detection:≥200 pieces Blind area:≤50m Coverage: Azimuth: 0°～360°; Pitch: 0°～40°; Altitude: ≥800m Accuracy (RMS): Azimuth: ≤0.4°; Pitch: ≤0.4°; Distance: ≤5m; |
|
|
Suppression Interference |
Suppression Interference |
Interference countermeasure frequency band: 845MHz/915MHz/1.5GHz/2.4GHz/5.2GHz/5.8GHz Power amplifier ≥50w Navigation deception frequency band: Civilian C/A code frequency band of GPS, GLONASS, BD satellite navigation system; Interference azimuth coverage: 0-360° pitch coverage: -30~60° Interference mode: directional interference Others: Support link interference and navigation interference to work simultaneously Power: ≤1200w |
| Laser blinding |
Distance:1km Wavelength: 532nm； Power consumption:≥0.5MW； Frequency:5Hz； Divergence angle:≤8~9mrad； |
|
| Intelligent camera | Thermal camera channel |
Detector: Cooled focal plane array MCT detector Resolution: 640×512 Lens: 20～450mm, 12x continuous optical zoom Lens control: Electric zoom, manual/auto focus Image enhancement: SDE digital image detail enhancement technology |
| Daylight camera channel |
Sensor: 1/1.8″ target surface starlight-level CMOS, ICR color to black Resolution: 2688×1520 Focal length: 12.5～775mm HD electric zoom lens Defog: Support photoelectric/electronic dual fog penetration |
|
| LRF |
Distance:≥3km Wavelength:1570nm |
|
| AI·Tracking |
Computing power: built-in 16Tops computing power processor Implementation method: front-end embedded hardware recognition and tracking Tracking mode: manual, automatic tracking, support radar linkage Recognition: support classification and recognition of targets such as people, cars, ships, drones, etc. (customers need to assist in providing data sets) |
|
| Servo platform |
Structure: side load, coaxial Horizontal range: N×360° continuous rotation, mechanical lock after power failure Pitch range: -30°～+60°, with soft limit function, programmable Rotation speed: horizontal 0.01°～100°/s, pitch 0.01°～80°/s Acceleration: horizontal 100°/s2, pitch 100°/s2 |
|
| Interface |
Network interface: 1 100M/1000M adaptive Ethernet port Power supply: AC220V±20%, 50Hz System power consumption: ≤3000W Total weight: ≤260kg |
|
| Software |
Integrated control and display: platform integrated design, centralized control, centralized display, more efficient operation Equipment access: support spectrum, radar, optoelectronic, countermeasure equipment access, control, support online status monitoring Situation display: support spectrum detection of drone target information access; support dynamic display of drone target point trace and track information, support radar target track, video recording and synchronous playback. Situation distribution: support spectrum, optoelectronic, radar and countermeasure equipment, target point trace, and other types of information based on two-dimensional comprehensive situation distribution display; support optoelectronic equipment video pop-up window observation and cloud mirror function scheduling; support target track to guide optoelectronic sighting, and each detection information to guide countermeasures. Data fusion: support spectrum and radar track data fusion, 0-20 levels can be set, support spectrum, radar, optoelectronic secondary fusion, sign display. Unmanned: support radar optoelectronic automatic linkage, support single target unmanned, multi-target unmanned; support unmanned automatic strike, strike conditions can be set. |
|
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish Anti Drone System is a cutting-edge product specifically designed to counter drone threats in various scenarios and settings. With its advanced features and reliable performance, this anti drone system is ideal for a wide range of application occasions.
One primary application scenario for the Hope-Wish Anti Drone System is in safeguarding critical infrastructure such as airports, government buildings, and power plants. The system's integrated uav radar technology enables it to detect unauthorized drones entering restricted airspace, allowing for timely intervention to mitigate potential risks.
Another key application area for this anti drone system is in protecting public events and gatherings. Whether it's a music festival, sports event, or political rally, the Hope-Wish Anti Drone System can provide real-time monitoring and response to any drone intrusion, ensuring the safety and security of attendees.
Furthermore, the anti drone system is well-suited for military and defense purposes, where countering enemy drones is a critical priority. The system's high update rate of 1.2s and precise tracking capabilities make it an invaluable tool for defense forces to neutralize hostile drone threats effectively.
In addition to its security applications, the Hope-Wish Anti Drone System can also be deployed in industrial settings to protect sensitive areas and manufacturing facilities from potential espionage or sabotage attempts using drones. The system's waterproof design (IP68) ensures reliable operation even in challenging environmental conditions.
With its cuboid shape, the anti drone system can be easily integrated into existing security infrastructure or deployed as a standalone solution. Originating from China, this product boasts a voltage range of 24-28V and operates at a current of 3.2A@28V, making it energy-efficient and cost-effective in the long run.
The Anti Drone System product offers comprehensive Product Technical Support and Services to ensure the efficient functioning and maintenance of the system. Our technical support team is available to assist with any inquiries, troubleshooting, or issues that may arise during the use of the product.
Our services include regular system updates to keep up with the latest technology and threats, as well as training programs for operators to maximize the effectiveness of the Anti Drone System. Additionally, we provide on-site maintenance and repair services to address any hardware or software issues promptly.
Q: What is the brand name of this Anti Drone System?
A: The brand name of this Anti Drone System is Hope-Wish.
Q: What is the model number of this Anti Drone System?
A: The model number of this Anti Drone System is HP-.
Q: Where is this Anti Drone System manufactured?
A: This Anti Drone System is manufactured in China.
Q: What kind of drones can this system detect?
A: The Anti Drone System can detect a wide range of drones, including commercial, consumer, and military drones.
Q: Does this Anti Drone System come with installation support?
A: Yes, we provide installation support for this Anti Drone System to ensure proper setup and functionality.
