Thông tin chi tiết sản phẩm:
|
| Kiểu: | Camera ảnh nhiệt PTZ | Nhiệt độ hoạt động: | -20 ° C đến +60 ° C. |
|---|---|---|---|
| Tốc độ khung hình: | 30Hz | Phóng: | Thu phóng quang học 10 lần |
| Tập trung: | Tự động/Thủ công | Nhiệt độ lưu trữ: | -30°C đến +70°C |
| Đang xử lý hình ảnh: | Nâng cao chi tiết kỹ thuật số | Nghị quyết: | 640x480 |
| Làm nổi bật: | industrial thermal camera module,PTZ thermal imaging camera with tilt,IOT smart camera multi-sensor |
||
Powered by a advanced thermal sensor, the PTZ Thermal Imaging Camera offers exceptional thermal imaging performance, delivering accurate temperature readings and reliable detection capabilities. The sensor provides reliable thermal imaging in various lighting conditions, making it a versatile solution for both indoor and outdoor use.
Designed to withstand harsh environments, this thermal imaging camera has an operating temperature range of -20°C to +60°C, ensuring reliable performance in extreme weather conditions. Whether used in hot or cold climates, this camera can deliver consistent results, making it a reliable choice for demanding applications.
The PTZ Thermal Imaging Camera is a valuable investment for organizations looking to enhance their security and surveillance capabilities. With its advanced features and reliable performance, this camera offers exceptional value for its thermal camera price. Whether used for monitoring critical infrastructure, securing perimeters, or conducting search and rescue operations, this camera provides a powerful tool for enhancing situational awareness and improving overall security.
In conclusion, the PTZ Thermal Imaging Camera is a versatile and reliable solution for a wide range of security and surveillance applications. With its advanced thermal imaging capabilities, durable construction, and user-friendly design, this camera offers exceptional performance and value. Whether used for scope thermal imaging, long-range security camera applications, or other surveillance needs, the PTZ Thermal Imaging Camera is a powerful tool that can help organizations enhance their security posture and improve operational efficiency.
| Model | HP-DMS10-4300-20 |
| Detection |
vehicles:1700m human: 720m fire point (@2x2m): 1000m |
| Recognition |
vehicles:500m human: 200m |
| Thermal imaging Camera |
1.Detector: The sixth generation uncooled focal plane array VOx detector 2. Wavelength: 8～14μm 3. NETD:40mK(@25℃ F1.0) 4. Lens: 20mm 5. Image enhancement: SDE digital image enhancement technology, enhance the details of the image, support 255 thermal image enhancement adjustment 6.Pseudo-color polarity: 16 kinds of pseudo-color images, hot black/hot white 7.Image parameters: AGC automatic gain control, brightness, contrast 8.Electronic zoom: 1.0～8.0×continuous zoom (step length 0.1), support global eagle eye diagram 9. Ranging ruler: support for range finding ruler 10.Dead pixel correction: support the function of dead pixel correction 11.Image correction: support manual correction, background correction, automatic correction time interval, adjustable Gamma correction parameters 12.Strong light protection: support anti-sun damage 13.Non-uniformity correction: automatic/hand |
| Resolution | Pixel:384×288 |
| Visible Camera |
1.Sensor type: back-illuminated ultra-low illumination starlight CMOS 2.Minimum illumination: color: 0.0005Lux @ black and white: 0.0001Lux @ 0Lux(IRON) 3.Lens:7mm～330mm, 47 times optical zoom,16 times digital zoom. 4.Image processing: white balance, electronic shutter, frame accumulation, backlight compensation, glare suppression, 2D/3D digital noise reduction, electronic anti-shake, wide dynamic. 5.Day and night light: 0.4-0.75um visible light wide spectral window and 0.8-0.95um near-infrared spectral window day and night independent double light window, improve the signal-to-noise ratio of imaging light and stray light 6.Support electronic fog penetration and optical fog penetration |
|
Laser illuminator |
1.Laser Homogenization: new infrared GHT-III HD flood light source, no scattered particles 2.Laser angle: 3°~65° switchable 3.Laser distance: 300m |
| Video audio |
1.Thermal camera resolution:support 1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240 2.Visible camera resolution:2592×1520；2560×1440；1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240 3.Video encoding: H.265/H.264/MJPEG,multi-stream support 4.Video code rate:32Kbps～16Mbps 5.Audio encoding:G.711A/ G.711U/G726 6.Image flip: left and right / up and down / diagonal 7.OSD settings: Support OSD display settings for channel name, time, gimbal orientation, field of view, focal length, and preset bit name settings |
| Intelligent functions |
1. Fire detection alarm: threshold 255 levels, target size, number of targets 1-16 can be set, automatically select the most prominent target display, hot spot tracking 2. Intelligent analysis: support intrusion detection, boundary crossing detection, entering/leaving area detection, motion detection, wandering detection, people gathering, fast moving, target tracking, items left behind, items taken; people/vehicle target detection, face detection; and support 16 area settings; support intrusion detection people, vehicle filtering filtering function; support target temperature filtering filtering function 3. Automatic tracking: support single scene tracking/support multi-scene tracking/support panoramic tracking/support alarm linkage tracking 4. Intelligent information fusion: support 512 AR intelligent information fusion, support fire point, intelligent analysis of the recording logo information fusion, support orientation angle, field of view angle, focal length, multiplier information fusion 5.Image fusion: support 18 kinds of double light fusion mode, support picture-in-picture function 6.Alarm management: support for alarm capture and upload |
| Enhanced Features |
1. Distance measurement: support passive distance measurement; support optional laser distance measurement. 2. Support sound and light alarm: internal integrated tweeter + flashing light, support alarm sound customization. 3. Support alarm linkage fire fighting device. 4. Camera diagnostic functions: support disconnection alarm, support IP conflict alarm, support illegal access alarm (illegal access times, lock time can be set), support SD card abnormal alarm (SD space is insufficient, SD card error, no SD card), video masking alarm, anti-sun damage (support threshold, masking time can be set). 5. Whole life management: health index record function, support working time, shutter count, working temperature, limit temperature, etc.; zoom lens and head each motor working cumulative time, etc. 6. Support disconnection renewal. 7. Power failure memory: support can restore the position before power failure, preset point state, cruise state, line sweep state. 8. Remote maintenance: with fault query, self-test, remote restart function; online upgrade, remote upgrade. 9. Key frame setting: support key frame interval 100 levels adjustable. 10. Configuration file: support configuration file import and export function. 11. Web access: support WEB full function configuration, remote online upgrade. |
| PT |
1. Rotation speed: Horizontal: 0.01°/s～100°/s; Pitch: 0.01°/s～80°/s, support focal speed adaption. 2. Rotation angle: horizontal: 360° continuous rotation; pitch: -90°～+90° 3. Structure material: quasi-spherical design of micro-rotary, integrated 5-window multi-channel, fine cast high strength aluminium alloy material. 4. Window glass: infrared/visible high efficiency optical glass, clean film coating. 5. Surface coating: PTA triple anti-corrosion coating, anti-corrosion. 6. Wiper: support intelligent automatic wiper 7. Defrost: visible window defrost 8. Preset position cruise: 3000 preset positions, support 16 cruise routes, each can support 256 preset positions 9. Watch function: preset bit / pattern scan / cruise scan / vertical scan / frame scan / panorama scan / apple skin scan / horizontal fan sweep line scan 10. Support 3D frame selection zoom 11. Orientation information: support angle query/real-time return and positioning; support lens field of view return and positioning 12. Zero point correction: support northward zero point remote correction function |
| Electrical interface |
1. Communication and control: 1 *RJ45 Ethernet port; 2* alarm inputs, 1 *alarm output; 1 *audio input input, 1 *RS485 interface. 2. Protocol: Support HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP network protocols; support ONVIF and GB28181 protocols. 3. Development interface: Support HP-SDK secondary development |
| Enhanced Function |
1. Glare protection: support, anti-sun burn function 2. Temperature correction: no thermal image design, imaging resolution is not affected by temperature 3. Scene mode: support multiple configuration scenarios, adapt to no environment application 4. Auto focus tuning: support remote auto focus precision parameter adjustment, adapt to different scenes 5. Day and night cruise: day and night group cruise different preset groups, day cruise 1-40 preset position, night cruise 41-80 preset position, automatically switch day and night according to the photosensitive state, adapt to different time and space scenes 6. Lens servo: support lens preset position, focal length return, focus positioning function 7. Parameter setting: OSD menu remote call operation 8. Remote maintenance: support embedded program remote upgrade for easy after-sales maintenance |
| Safety control |
1. Support illegal access alarm: the number of illegal access, lock time can be set.
|
| Power supply |
1. Working voltage: DC 9~36V, external AC220V or battery power adapter
|
| Environmental adaptation |
1. Working temperature: -40℃～60℃
|
| Volume weight |
1. Weight: ≤10kg
|
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

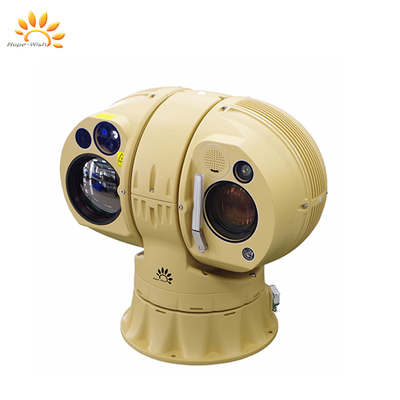

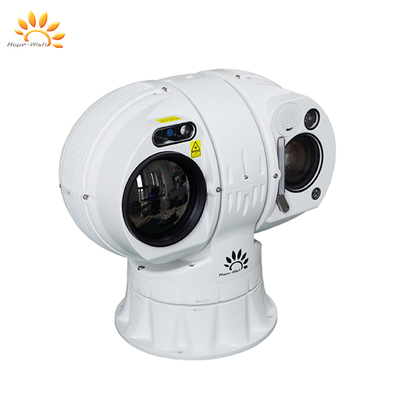

The Hope-Wish PTZ Thermal Imaging Camera, model HP-DMS, is a cutting-edge infrared camera module designed for versatile applications in various scenarios. With its origin in China, this thermal PTZ camera boasts a range of features that make it ideal for a wide range of product application occasions.
Thanks to its PTZ functionality, this thermal imaging camera offers 360° continuous rotation, allowing users to capture detailed thermal images from every angle. Whether it's monitoring large areas, conducting surveillance operations, or enhancing security measures, the HP-DMS excels in providing comprehensive coverage.
Equipped with a thermal sensor, this infrared camera module delivers high-quality thermal imaging output, ensuring clear and precise visuals in different environmental conditions. The 35mm lens further enhances the camera's capabilities, enabling users to focus on specific areas of interest with exceptional clarity.
For seamless connectivity and data transfer, the HP-DMS supports HDMI and USB image output options. This feature simplifies the process of viewing and transferring thermal images to external devices, making it suitable for a range of professional and industrial applications.
Whether it's monitoring critical infrastructure, conducting search and rescue operations, or enhancing situational awareness, the Hope-Wish PTZ Thermal Imaging Camera is a versatile tool that excels in various scenarios. Its advanced features, reliable performance, and durable design make it a valuable asset for professionals in need of a high-quality thermal imaging solution.
The Product Technical Support and Services for the PTZ Thermal Imaging Camera include:
- Assistance with installation, setup, and configuration of the camera system.
- Troubleshooting technical issues and providing solutions to ensure optimal performance.
- Regular software updates and firmware upgrades to enhance functionality and security.
- Training sessions and resources to help users maximize the capabilities of the camera.
- Warranty coverage and repair services for any hardware issues that may arise.
Product Packaging:
The PTZ Thermal Imaging Camera is carefully packaged to ensure its protection during transit. The camera is wrapped in foam and placed in a sturdy cardboard box to prevent any damage. The packaging also includes an instruction manual and all necessary cables for easy setup.
Shipping:
We ship the PTZ Thermal Imaging Camera using a reliable courier service to ensure safe and timely delivery. The camera is securely boxed and labeled for easy identification. Customers can track their shipment using the provided tracking number for added convenience.
Q: What is the brand of this thermal imaging camera?
A: The brand of this thermal imaging camera is Hope-Wish.
Q: What is the model number of this PTZ thermal imaging camera?
A: The model number of this PTZ thermal imaging camera is HP-DMS.
Q: Where is this PTZ thermal imaging camera manufactured?
A: This PTZ thermal imaging camera is manufactured in China.
Q: What are the key features of the HP-DMS PTZ thermal imaging camera?
A: The key features of the HP-DMS PTZ thermal imaging camera include pan-tilt-zoom functionality, thermal imaging capabilities, and advanced image processing.
Q: Is the Hope-Wish HP-DMS PTZ thermal imaging camera suitable for outdoor use?
A: Yes, the Hope-Wish HP-DMS PTZ thermal imaging camera is designed for outdoor use and is built to withstand varying weather conditions.
